Guide To Ebike Brakes

Electric bikes have various parts that influence the performance of a whole bike, but among them, one of the most decisive parts is the braking system.

While it appears that every braking system looks, all the same, the fact is that they aren’t exactly. Different brakes will have a huge impact on how responsive they are, how stable when it comes to a stop, and also various other critical riding variables. In this article, we will introduce the ebike brakes.

1. Type Of Ebike Brakes

While a regular brake system differs in terms of performance from brand name to brand, most of them are categorized right into 2 kinds: V Brakes and disc Brakes, and the dis brake include mechanical disc brakes and hydraulic disc brakes.

V Brakes

V brake

A bit of cable yanks on two blocks. The blocks grab a hold of the rim of the wheel. The bike slows down.

Back in the day they had them on racers, mountain bikes, all sorts. Get them well set up, squeeze like hell, and they worked pretty well.
But! An eBike weighs 30 pounds more. Dare I say it….many eBike riders may weigh a bit more than last time they had a bike with brakes like this. Ebikes go faster…consistently faster…
Add that to hilly Westchester and you end up with way more momentum than this kind of brake can controllably scrub. Plus the pads will overheat and wear out in 5 minutes flat.

Dis Brakes

dis brakes

Disc brakes are one of the most common designs of bike brakes that function by using the braking force(friction) from the brake bar to the rotor, which is placed on the hub. They are mostly different from rim brakes which apply the brake force directly to the rim of each wheel by utilizing brake pads.

The primary difference between mechanical and also hydraulic disc brakes lies in just how they transfer the force from the brake lever to the disc.

Mechanical Disc Brakes

Mechanical Disc Brakes

To be simple, mechanical disc brakes are operated by a steel cord that attaches the brake lever to the brake caliper, which is the same way as a majority of rim brakes, such as calipers, cantilevers, and also V Brakes. Some cable-routing systems can be way too complex and tend to deteriorate due to the friction while braking.

Mechanical disc brakes from Magicycle are responsive and produced in solid materials, bringing less damage while braking. They can just last for a long time and keep you safe from sudden braking.

Hydraulic Disc Brakes

Hydraulic Disc Brakes

Hydraulic disc brakes make use of a sealed fluid system to transmit the braking force. What is inside this braking system is a piston as well as a master cylinder that maintains the brake fluid. When the brake lever is gripped, the piston gets inside the cylinder, pushing brake fluid in the direction of the brake caliper.

This power is then transmitted to pistons inside the brake caliper which press the brake pads right into the rotor– thus slowing down the turning of the rotor and also the wheel. To purchase this brake, you need to choose a trustworthy brand like Tektro, which is a company specializing in producing brakes. Magicycle’s mechanical brakes are all from Tektro, absolutely worth buying. Our Merry Gold Ebike usually use Tektro dis brake.

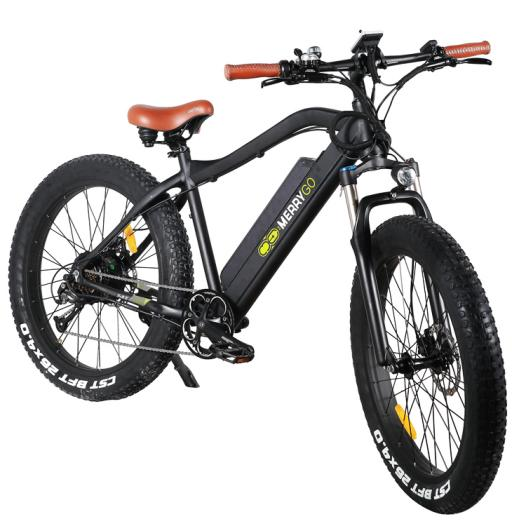

Paladin ebike

If money is your priority, mechanical disc brakes will certainly be better. However, if you’re a serious rider who pursues the best riding experience, there is no doubt that you need to select hydraulic brakes. To know the differences both mechanical and hydraulic disc brakes , and make your right  choice.

2. Similarties And Differences Of Mechanical And Hydraulic Disc Brakes For Ebike

Mechanical disc brakes are usually less costly than hydraulic disc brakes.  Although you can place either type of disc brake onto a disc brake-compatible ebike, the process can be hard and costly because hydraulic disc brakes need specific levers that suit this kind of brake.

Mechanical disc brakes are far less complex as they don’t need any unique and rarely owned tools, although it is not easy to set them up and also they tend to wear out. Hydraulic disc brakes have much better braking power than mechanical disc brakes, and by the way, both brakes are designed to outperform rim brakes.

On the whole, hydraulic disc brakes are better in efficiency and also effectiveness because of less friction. The fluid system is far more reliable than a steel cable because it tends to wear out. Even without a cut or hole, it can be very easy for mud and dirt to slip into mechanical disc brake systems during numerous miles of off-road riding.

Several mechanical disk brakes only have a single piston that presses the disc against the pad to generate the force, unlike hydraulic disc brakes where both pads move.

While hydraulic disc brakes are very reputable, they are also even more engaged when it involves fixing, as the fluid-driven system frequently requires unique tools as well as a considerable quantity of proficiency to be dealt with or adjusted.

With that in mind, we’ll get started on our eBike brake discussion by going over all the components that form the braking system.

3. What Are The Components That Form An EBike Braking System?

Levers

Levers are the appendages attached to your handles and used as the primary activation system for your brakes. Basic levers don’t offer much in terms of extra features. But did you know that premium brakes have adjustable lengths, angles, and even pull strength?

The only other thing worth mentioning is that while the laws vary depending on where you live, the United States and much of the world require that the front wheel be connected to the left brake lever, and the back wheel be connected to the right brake lever.

Cable

The cable connects the lever to the caliper, running from your handlebar to your wheels. The vast majority of eBikes rely on a mechanical disc brake system. Mechanical disc brakes have cables filled with air, while hydraulic disc brakes have cables filled with fluid. Mechanical disc brakes are easier to repair and replace, while hydraulic disc brakes provide greater stopping power due to the cable setup.

Caliper

The caliper is the central housing unit for two other critical braking components: the Brake Pad and the Pistons. When the lever is pulled, the pistons will move and press the brake pad into the brake rotor. Brake pads are specifically designed to slow down the eBike by applying friction to the brake rotor while also absorbing the brake rotor’s heat when pressed against it. Brake pads are typically the first component you need to replace on a braking system that isn’t functioning correctly.

Brake Rotor

The brake rotor is a large metal disc that sits in the Wheel Hub, which refers to the center component of the wheel that holds it all together. As the brake pad is pressed into the spinning brake rotor, it slows it down by creating friction, making it harder for the rest of the wheel to turn.

The larger the brake rotor, the faster you slow down due to the greater friction generated. However, be aware that brake pads will wear out quicker on a larger brake rotor because of the larger friction compared to a smaller rotor. Typical eBike brake rotors are often between 160 mm to 180 mms in size.

4. Conclusion

Brakes are easily one of the most crucial safety components on your eBike and can be the difference between having a small crash when something goes wrong or a nasty one.
A small issue with your brakes can be easily fixed–but let it linger–and it will likely lead to massive performance issues and irreparable damage to your braking system or even your eBike frame. So, take a few minutes to periodically check, adjust, and clean your brakes, especially when you begin to suffer from performance issues. It might not seem like much, but a few minutes can save you hundreds of dollars and will make sure your brakes work like they should when you need them most.
