Paladin Electric Mountain Bike

  • 48V 350W

  • 48V 10.4Ah


Paladin Electric Mountain Bike

People love mountain biking and nothing ignites this sport like a modern electric mountain bike. Designed specifically for narrow trails and rough terrain, these models allow the rider to either pedal and pilot themselves as usual, or zip to the top of the course with minimal effort. An integrated frame design seals the deal.


Motro Type Motro Type Rear drive
Motor Power 36V250w ( EU) 48V500W ( 750w is optional)
Working Style PAS only ( EU) PAS & Throttle, 1:1 intelligent PAS
Controller 36V 18A ( EU) /48V18A(500W)/48V25A(750W)
Display White and Black LCD display
Light F: LED light

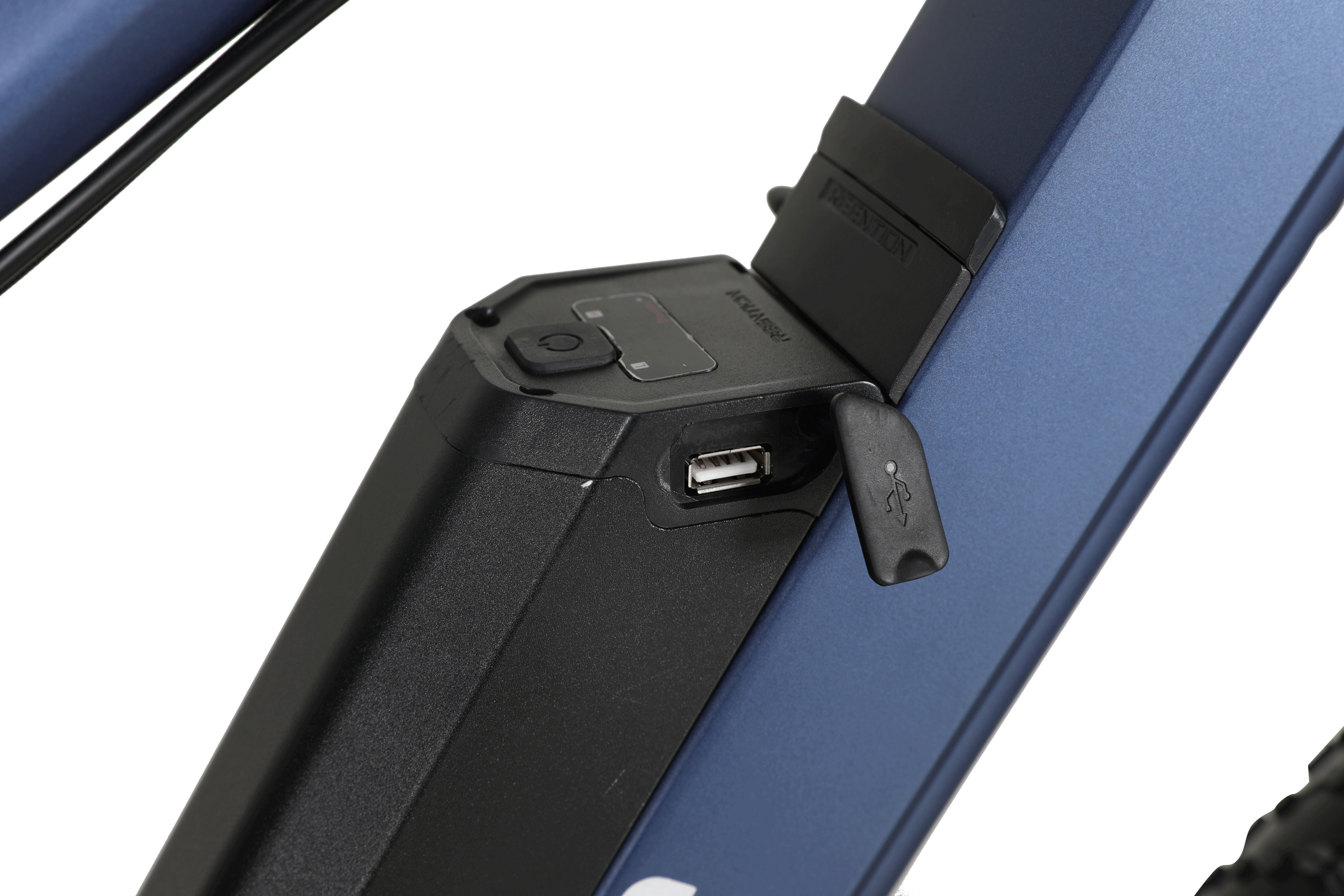

Battery Lithium battery 36V13ah/15ah/20ah/48V13/15AH/17.5ah
Charger 50-60HZ, AC90-240V
Mechanical Frame Aluminum Alloy 6061#
Tyres 26"*4.0
Rim Alloy
Brake F/R: Disc brake 180mm

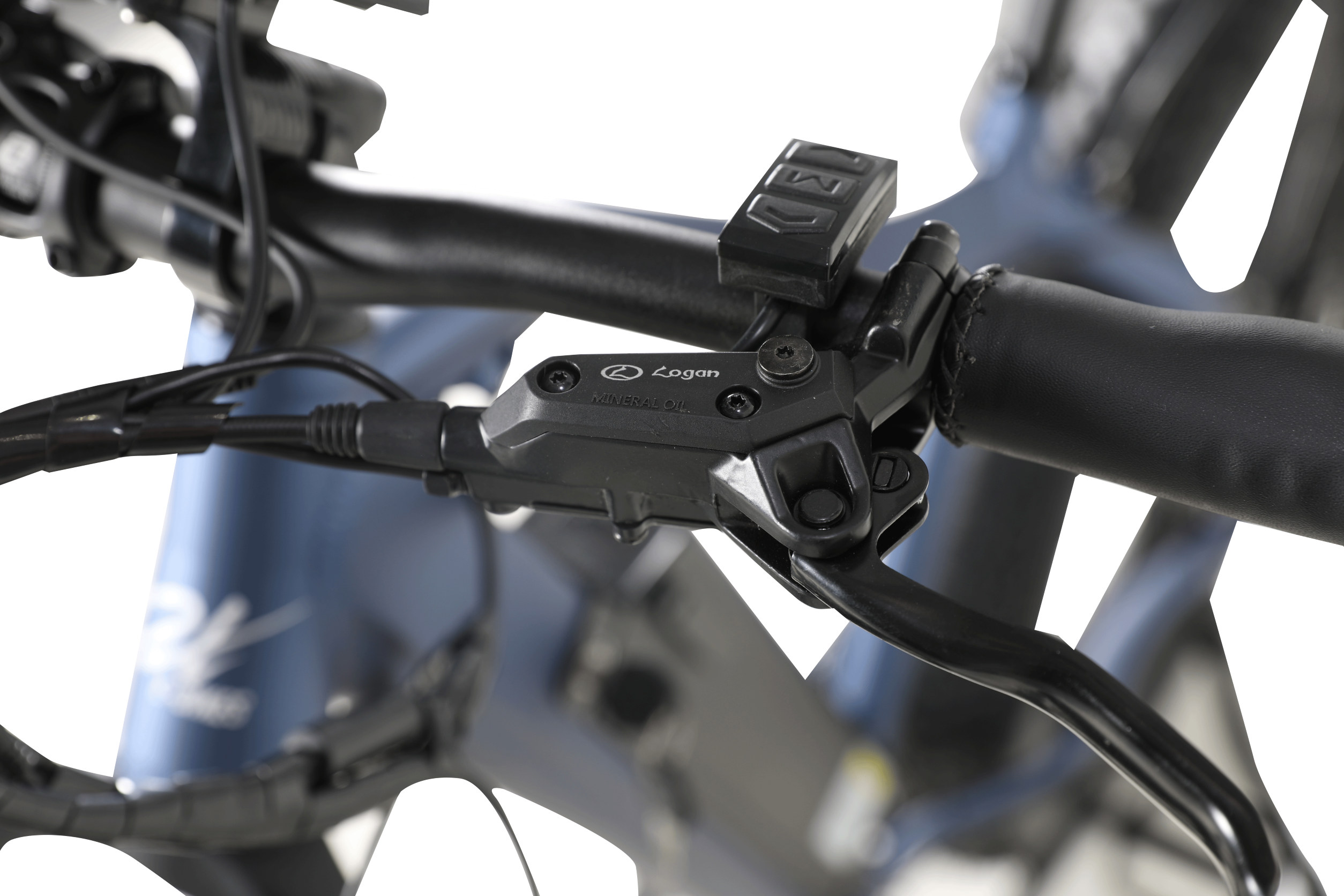

Brake Lever Tektro Cut-off while braking
Front Fork steel fork with painting ( suspension fork is optional)
Derailleur Shimano 7 speed tourney
Other Handlebar&Stem&Seat post: Alloy
Performance Max Speed 25KM/H(EU) ; 32km/h ( 500w); 45km/h ( 750w)
Range 35KM-60KM
Max Loading 110KG
Climbing ≥10% (36V250w) ( EU) ≥20%
Charge Time 5-6H / Cricle Life > 600times
Packing Info Available Colors Customized, Y.S color code
Body Size -
Packing Size 1580MM*280MM*900MM
N. W/ G.W 40KG/45KG
Container Load 20"- 63PCS 40"-163PCS
