FAT Tire Tricycle Step Through E-Cargo Bike

  • Merry Gold

  • 48V 500W

  • Lithium battery 48V 13AH


FAT Tire Tricycle Step Through E-Cargo Bike

Customers might be running multiple errands, picking up supplies, or making business deliveries. Electric utility bikes get the job done! Whatever cargo may be aboard the unit, these electric bikes are designed to help them stay safe and secure while the rider takes on traffic and hills with total ease.


Motro Type Motro Type Front   drive
Motor Power 48V500W (750W is optional)
Working Style PAS & Throttle, 1:1 intelligent PAS
Controller 48V18A ( 500w); 48V25A( 750w)
Display LCD C900E colorful display
Light F: LED light
Battery Lithium battery 48V10/13/15/20AH
Charger 50-60HZ, AC90-240V
Mechanical Frame Aluminum Alloy 6061#
Tyres Front: 24” * 4.0inch, Rear: 20” * 4.0inch
Rim Alloy
Brake F: disc brake /R: double disc brakes F180mm R180mm

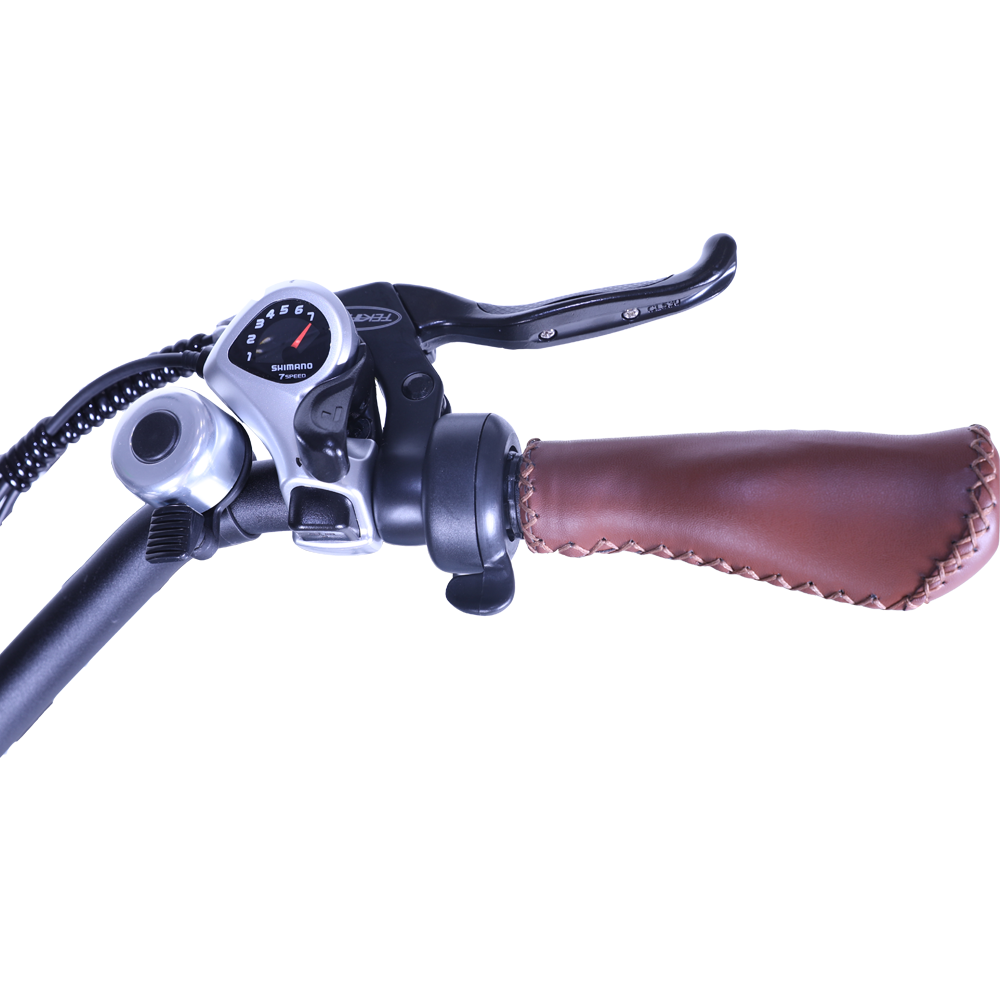

Brake Lever Tektro Cut-off while braking
Front Fork suspension fork
Derailleur Shimano 7 speed tourney
Rear speed differential Included
Other Handlebar&Stem&Seat post: Alloy
Performance Max Speed 30km/h ( 500w) ; 40km/h ( 750W)
Range 35KM-60KM( according the battery capacity)
Max Loading 125KG
Climbing ≥20%
Charge Time 5-6H / Cricle Life > 600times
Packing Info Available Colors Customized, Y.S color code
Body Size
Packing Size 148*86*78CM
N. W/ G.W 45KG/55KG
Container Load 20"- 21PCS 40"- 48PCS
